KillaJoule

KillaJoule is the world’s fastest electric motorcycle with a top speed of 270 mph (434 km/h) so far. Builder, owner, and rider is Eva Håkansson.

The only purpose of this 19 ft. (5.6 meter), 400 HP, sleek motorcycle is to show that eco-friendly can be fast and sexy.

KillaJoule is really “eco-activism” in disguise.

KillaJoule_Eva_white_dress_Light_picture_even_lower

The KillaJoule may look complicated, but if you think about it, it is just a giant cordless drill with wheels! It has a battery  with the same kind lithium-ion chemistry that you will find in cordless tools, a motor, some power electronics and a throttle. And wheels, of course. Except for the wheels, it is pretty much the same components in as in a cordless drill. A 400 horsepower cordless drill….. 😉

The picture below shows all the majors parts of the KillaJoule. Click on the photo for a larger picture.

KillaJoule_X-ray_Jan_2016

Technical Data for the KillaJoule

Battery: A123Systems Lithium Nano-Phosphate, 400 V and 10 kWh. 500+ HP.

Motor: EVO Electric AFM-240 motor, 500 HP.

Motor controllers: Two Rinehart Motion Systems PM100 controllers, 400 HP combined.

Weight: about 1540 lb. (700 kg) including the rider Eva Håkansson

Dimensions: Length 19 ft (5.6 m), width appr. 21 inches (0.53 m), height appr. 38 inches (0.96 m), wheelbase 150 inches (3.8 m), track width when fitted with sidecar 45 inches (1.14 m)

Frame and suspension: Chrome-Moly steel tubing with “Springer” style front end and classic stereo suspension for rear end.

Brakes: Disc brakes front and back. Two Kevlar ribbon brake parachute, actuated with Bimba air cylinders.

Body: Fiberglass composite nosecone, canopy and sidecar wheel cover made by Nova Kinetics Aerosystems in Flagstaff, AZ. Body panels of pre-painted aluminum from ALRECO.

Rider, builder, designer and owner: Eva Håkansson

Crew chief, designer and owner: Bill Dubé

Senior adviser and designer of the suspension: Sven Håkansson

Pit crew: Mike Stockert, Alicia Kelly and Kent Singleton

Current record (as of August 2016): World’s fastest electric motorcycle and the world’s fastest sidecar motorcycle @ 248.746 mph (400.2 km/h) (pending FIM ratification). Complete list of records here. It is also the world’s 4th fastest battery-powered vehicle (higher records were set by the cars White Lightning and Buckeye Bullet 1 and 2.5).

Registered top speed: Currently 270.224 mph (as of September 2014).

“Fuel”: The battery in KillaJoule is recharged using solar power at home in Colorado, or by a hybrid quiet bio-diesel powered generator from CumminsOnan at the race track. We would love to use solar panels at the track, but we can’t afford it…



Don’t forget to check out our great PARTNERS that made KillaJoule possible.

Follow Eva and the building of KillaJoule in her blog and on our Facebook page www.facebook.com/EvaHakanssonRacing

You will find VIDEOS of Eva and the KillaJoule here



—————————————————————

PRESS PHOTOS

The photos below can be used free of charge for editorial purposes to promote electric vehicles in a positive way. Please give proper photo credit if possible (if there is no photographer listed, no credit has to be given). The photographers below give us free photos, and giving them photo credit increases the probability that we will receive more photos in the future.

Private blogs, non-profit organizations and similar count as editorial purposes. We would appreciate a link or copy of the article for our archive.

The pictures cannot be used for commercial products (such as coffee cups or book covers) or in advertisement without written permission.
For all Media and Press inquiries please use media [insert “at” here] evahakanssonracing.com

Thanks for giving our photographers credit!

Click on the photo to get full resolution. Some photos may be available in even higher resolution upon request.

KillaJoule and Eva Håkansson

Eva_KillaJoule_red_dress_Photo_by_BonnevilleStories,com

Builder, owner, and rider Eva Håkansson with KillaJoule. Photo: BonnevilleStories.com

KillaJoule_Eva_white_dress_Maintenance_picture

Eva Håkansson with KillaJoule.

KillaJoule-CumminsOnan_IMG_1336

“KillaJoule” in front of our bio-diesel powered generator for CumminsOnan that gives us green power at the track. The charging at home is done with solar, which also powers our Nissan Leaf electric car that we use for commuting.

KillaJoule-CumminsOnan_IMG_1330

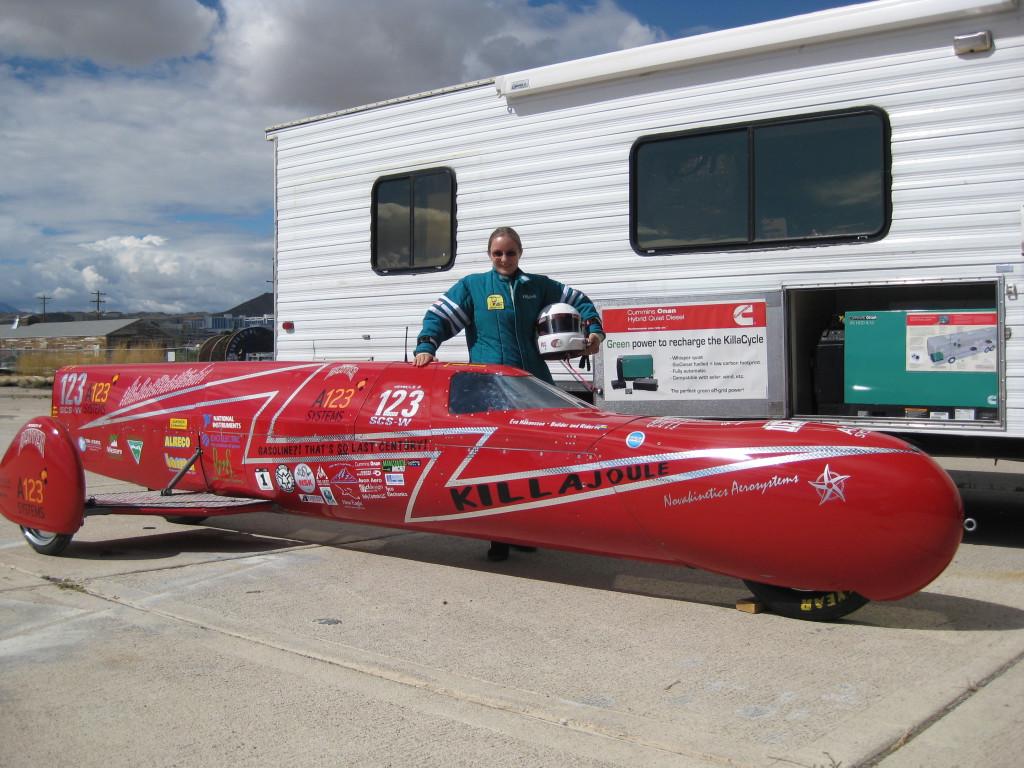

“KillaJoule” in front of our bio-diesel powered generator for CumminsOnan that gives us green power at the track. The charging at home is done with solar, which also powers our Nissan Leaf electric car that we use for commuting.

KillaJoule_photo-Scooter_Grubb1

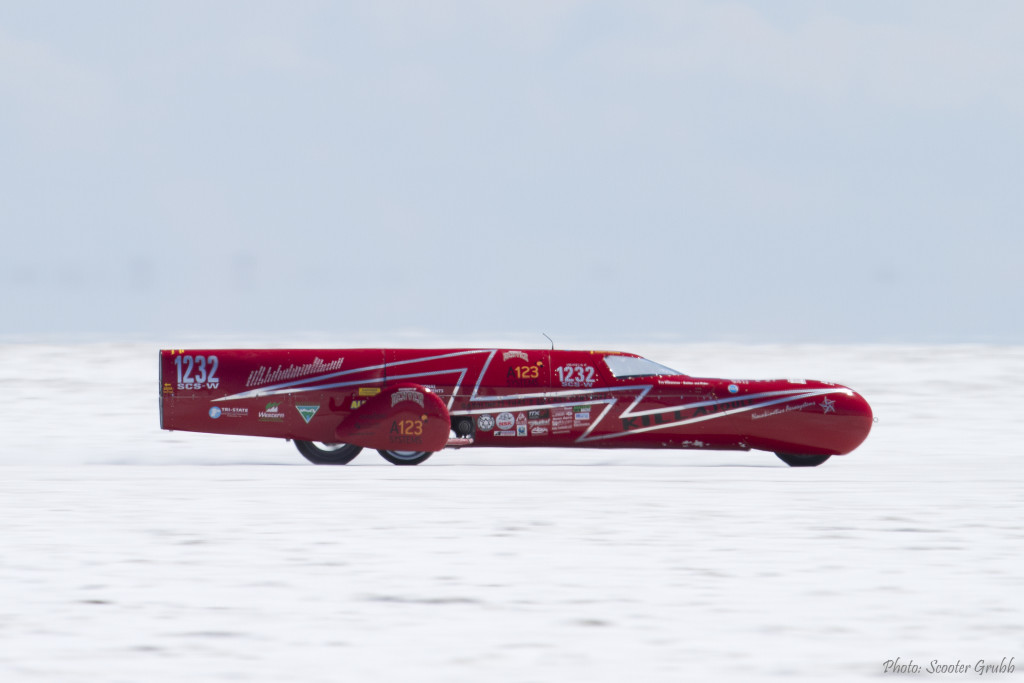

KillaJoule and Eva Håkansson during a record attempt at Bonneville Salt Flats, Utah, USA. Photo: Scooter Grubb

KillaJoule_Eva_Bill_crop1

The wife-husband team Eva Håkansson and Bill Dube’ with KillaJoule. Photo: BonnevilleStories.com

mini-Eva_prep_IMG_1178

Eva Håkansson working on the KillaJoule.



View_KillaJoule

The view from Eva’s “office” at 200+ mph!

Team_photo_KillaJoule_Bonneville_2014_IMG_3564

Racing is always a team work. Even if media wants to portrait it as “the (wo)man and the machine”, there is always a team behind every successful racer. The awesome KillaJoule team: Mike Stockert, Alicia Kelly, Bill Dube’ and Eva Hakansson (Kent Singleton not shown in picture).

Racing is always a team work. Even if media wants to portrait it as “the (wo)man and the machine”, there is always a team behind every successful racer.

Eva_KillaJoule_270mph_finish_IMG_1344-1024x543

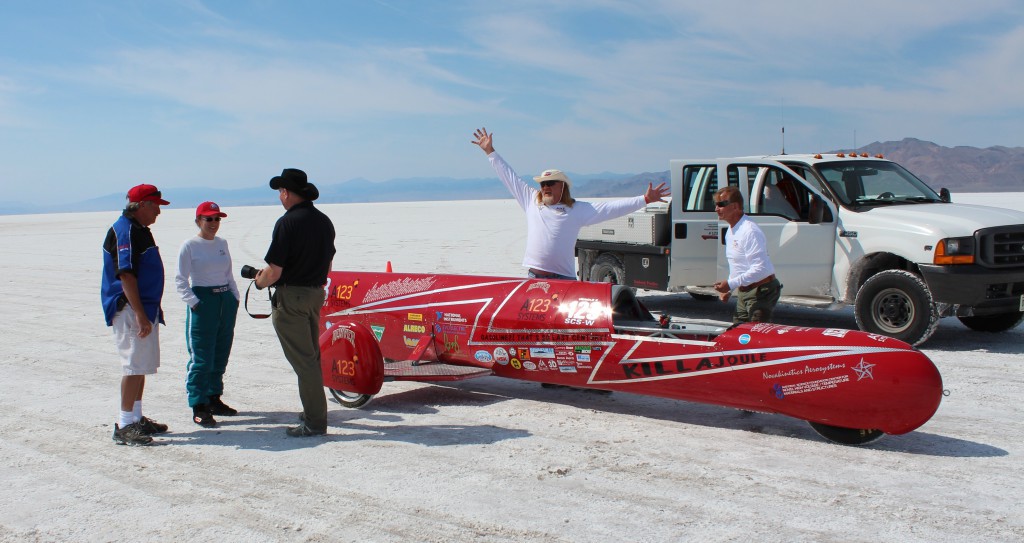

Eva Håkansson has just taken the title as the world’s fastest female motorcycle rider (September 2014). In the photo are also Mike Cook (race organizer), Malcolm Pittwood from the Speed Records Club in the UK, Mike Stockert (KillaJoule crew) and Kent Singleton (KillaJoule crew).

Action in the pits. KillaJoule at Bonneville Salt Flats, Utah, USA. Photo: Anthony Olway/TTxGP

Action in the pits. KillaJoule at Bonneville Salt Flats, Utah, USA. Photo: Anthony Olway/TTxGP

Eva_SheMoto_prize_crop

Eva Håkansson and KillaJoule with the 2012 SheEmoto Prize. The new battery pack for the 2013 season is being built in the background.

Eva Håkansson and the KillaJoule. Photo: Anthony Olway/TTxGP



Eva_Hakansson_2015_IMG_4678-2

Eva Håkansson.

IMG_1679

Eva Håkansson in the KillaJoule.

KillaJoule at Bonneville. Photo: Anthony Olway/TTxGP

KillaJoule at Bonneville. Photo: Anthony Olway/TTxGP

KillaJoule_Sunset

KillaJoule at Bonneville Salt Flats, Utah, USA.

IMG_1868

KillaJoule without the fairing.

KillaJoule_X-ray

KillaJoule under the skin.

KillaJoule_no_bkg

KillaJoule, no background (PNG format).

ElectroCat

Eva_Hakansson_garage_1075

Eva Håkansson and ElectroCat.

mini-Eva_garage_feb-08_DSC_1056

Eva Håkansson and ElectroCat.

IMG_0045_Pikes_Peak_May_2010_1024px

Eva Håkansson with the ElectroCat – the first electric motorcycle to make it to the top of Pike’s Peak, 14,110 ft (4,300 m) above sea level. May 2010.

 KillaCycle

KillaCycle_burnout_Woodburn_2008

The KillaCycle and Scotty Pollacheck at Woodburn Dragstrip.

KillaCycle_Woodburn_no_color

The KillaCycle and Scotty Pollacheck at Woodburn Dragstrip.



KillaCycle_Woodburn_background_removed_cont

The KillaCycle and Scotty Pollacheck at Woodburn Dragstrip. No background (PNG format).



Photos with restricted usage rights for commercial media

The photos below require permission from the photographer for use in commercial media. Please contact the photographer Phil Hawkins direct at http://ishootfromthehip.com/

Eva_KillaJoule_front_photo-Phil_Hawkins

Eva Håkansson and KillaJoule. Photo: Phil Hawkins. Permission required for use in commercial media.

Eva_KillaJoule_side_photo-Phil_Hawkins

Eva Håkansson and KillaJoule. Photo: Phil Hawkins. Permission required for use in commercial media.

Eva_KillaJoule_thumbs_photo-Phil_Hawkins

Eva Håkansson and KillaJoule. Photo: Phil Hawkins. Permission required for use in commercial media.

KillaJoule_2014

Eva Håkansson and KillaJoule. Photo: Phil Hawkins. Permission required for use in commercial media.

KillaJoule_photo-Phil_Hawkins

Eva Håkansson and KillaJoule. Photo: Phil Hawkins. Permission required for use in commercial media.

KillaJoule_by_Phil_Hawkins

Eva Håkansson and KillaJoule. Photo: Phil Hawkins. Permission required for use in commercial media.
